| Hydraulic Motors |
|
|
|
| SWASH PLATE TYPE AXIAL PISTON PUMP |
|
 |

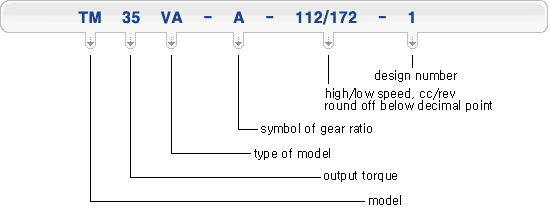

Motor with Strong Power and best performance, TM, GM MOTOR
Newly designed compact type and high capacity - gear, hydraulic motor, counter balance, and parking break in one body.
Lesser maintenance - reducing maintenance cost by designing with advanced technology and using minimum number parts of unit.
High reliability and Advanced Technology - a satisfaction for customers’ demand |
| Specification |
Model |
Regul
arity of Power Torque (tonf-m) |
MAX
RPM (r.p.m) |
Reduction ratio |
Hydraulic
Motor |
Parking
Brake |
Brake
valve |
Total
Weight (kgf) |
Applying excavator |
MAX Capacity (cc/rev) |
MAX RPM (r.p.m) |
Max Pressure (kgf/㎠) |
Brake torque (kgf/m) |
Release pressure (kgf/㎠) |
Type |
Regularity Fueling (l/min) |
| TM07VA |
0.72 |
65 |
53.7 |
39.8 |
3,600 |
320 |
8.4 |
9 |
B080B |
100 |
78 |
5~8 |
| TM24V |
2.4 |
50 |
48 |
119.5 |
2,400 |
350 |
27 |
11 |
B27 |
200 |
240 |
13~18 |
| TM24VA |
2.4 |
60 |
48 |
140.5 |
2,800 |
350 |
40.6 |
6 |
- |
250 |
238 |
13~18 |
| TM35VA |
3.5 |
50 |
41.7 |
183.9 |
2,100 |
350 |
49.6 |
9.5 |
B35 |
250 |
308 |
18~25 |
| GM35VL |
3.5 |
60 |
56/6 |
140.5 |
2,800 |
350 |
40.6 |
6 |
- |
250 |
275 |
18~25 |
| TM60VA |
6.34 |
36.6 |
63.8 |
195 |
2,340 |
350 |
44.4 |
8.5 |
- |
280 |
375 |
28~36 |
| *TM24 is out of stock, and it is only avabilable for A/S. |
 |
 |

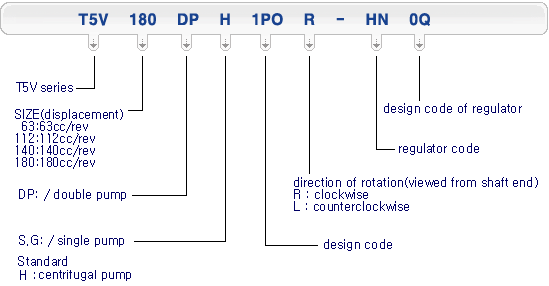

T5V series is developed for the construction and an industrial use. It is the trusted pump with more power and efficiency, and improved piston pump for the construction and an industrial use. |
| Specification |
SIZE |
63 |
112 |
140 |
180 |
Revolving Capacity (cc/rev) |
63 |
112 |
140 |
180 |
Pressure (kgf/㎠) |
Regularity |
320 |
|
Maximum |
350 |
RPM |
MAX (1) |
2,600 |
2,200 |
2,000 |
1,850 |
|
MAX
(2) |
3,250 |
2,700 |
2,500 |
2,300 |
Max
input Torque (Tandem type)(kgf-m) |
30 |
55 |
92 |
104 |
Weight(kgf) |
81 |
125 |
160 |
|
Power source |
Type |
*Abrasion power source(3) |
Temp |
-20~+95ºc |
Viscosity |
10~1,000 cSt |
Filter |
Inhale line |
80~150 mesh |
|
= Return line |
nominal 10 micron meter |
- It is rpm when axial reaches its higest degree.
- The high idle rpm shoul be lower when it oprated by engine.
- There needs to be more than booeted pressure of 1kgf/㎠ at inhlale Flange part.
- If you use other power source, Please Check withus before use.
|
 |
 |

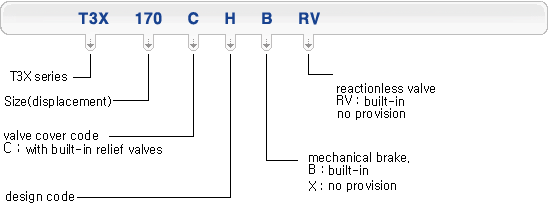

T3X SERIES is swash plate type piston motor for construction equipments. It has built-in mechanical break, relief valve, and make-up valve.
Compact design with properly located piston motor part, mechanical brake valve part and other valves.
Valve-casing has a built-in make-up valve and relief valve so that Control valve is directly piped to it.
Flange where hydraulic motor is located is able to directly connect to ring-gear.
Automated reverse turn stopping valve would make a smooth stop by reducing reverse turn. |
| Specification |
SIZE |
63 |
128 |
150 |
170 |
Revolving Capacity (cc/rev) |
64.0 |
127.9 |
148.5 |
169.4 |
Pressure (kgf/㎠) |
Regularity |
300 |
Maximum |
350 |
MAX RPM (r.p.m) |
2,200 |
1,700 |
1,600 |
1,500 |
*1Theoretical Torque (kgf-m)(1) |
30.6 |
61.1 |
70.9 |
80.9 |
*Theoretical Horse power (kW)(2) |
69 |
107 |
116 |
125 |
Brake |
Brake
torque (kgf-m) |
22 |
71 |
71 |
71 |
Release
pressure (kgf/㎠) |
22 |
30 |
30 |
30 |
Possible
release pressure (kgf/㎠) |
50 |
Weight (kgf) |
29 |
59 |
59 |
59 |
- It is theoretical result without machinery efficiency in regular pressure.
- It is theoretical result of regular pressure and MAX r.p.m.
|
 |
 |

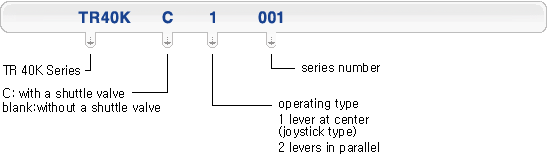

TR SERIES is swash plate type piston motor for construction equipments. It has built ?in mechanical break, relief valve, and make-up valve.
Compact design with properly located piston motor part, mechanical brake valve part and other valves.
Valve-casing has a built-in make-up valve and relief valve so that Control valve is directly piped to it.
Flange where hydraulic motor is located is able to directly connect to ring-gear.
Automated reverse turn stopping valve would make a smooth stop by reducing reverse turn. |
| Specification |
1st
side highest pressure (kgf/) |
100 |
2nd
side pressure (kgf/) |
0~40 |
Orthodox
flow (/min) |
20 |
Highest
back pressure (kgf/) |
3 |
Fabrication
angle |
1st
sample lever |
Independence:
±19°
Simultaneously:±25°
|
2nd
sample lever |
±19°
|
Electrical
circuit |
2
piece or 3 switch affix possibilities
Correct rules: DC30V 6A |
Fabrication
toe lu khu (the maximum fabrication hour) (kgf-m) |
10~42 |
Piping
connection department (screw) |
PF1/4
O-ring seal(KS B 1535) |
 |

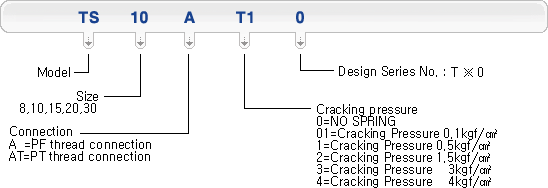

Model |
15 |
20 |
Pressure (kgf/Cm ²) |
315 |
Rated Flow (l/min) |
120 |
200 |
Weight(kgf) |
1.1 |
1.9 |
Thread connection |
3/4 |
1 |
|
 |

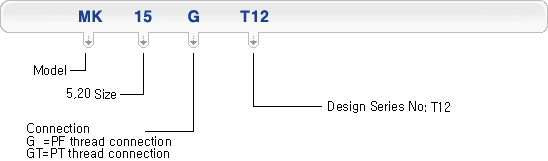

Model |
15 |
20 |
Pressure (kgf/Cm²) |
315 |
Rated Flow (l/min) |
120 |
200 |
Weight(kgf) |
1.1 |
1.9 |
Thread connection |
3/4 |
1 |
|
 |
The M2X series are swash plate type piston motors developed for application to swinging operation of construction machines, and are provided with a built-in mechanical brake, a relief valve, and a make-up valve.
The design has enabled an extraordinarily compact motor with the piston/cylinder part, mechanical brake part, and attached valves part neatly arranged respectively.
The mounting flange of the motor has been so enlarged as to enable it to be directly connected with the ring gear of a reduction gear.
M5X has been developed to realize the lighter weight, more compact size and stronger output power on the basis of M2X technology. |
| Specification |
model |
M2X63 |
M5X130 |
M5X180 |
M2X210 |
displacement (cm3) |
64 |
129 |
180 |
210 |
pressure (MPa[kgf/cm2]) |
rated |
29.4[300] |
32.4[330] |
29.4[330] |
max |
34.3[350] |
39.2[400] |
34.3[350] |
max speed (min-1) |
2,200 |
1,850 |
1,680 |
1,400 |
|
|
|
| Please fill free to contact us at anytime |
|
|
|
